Hex Bolt Sleeve Anchor
Related Products
Understanding Hex Bolt Sleeve Anchors for Solar Projects

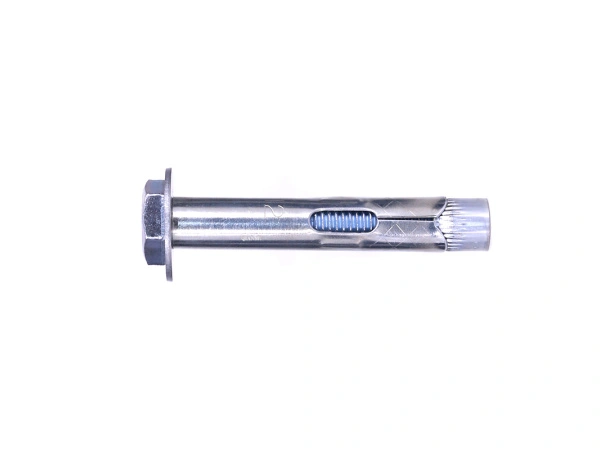

A hex bolt sleeve anchor is a specialized mechanical fastener designed to provide immediate high-load holding power in concrete and masonry substrates. Unlike traditional wedge anchors that require precise drilling depth, sleeve anchors expand within a perforated sleeve when the hex bolt is tightened, creating a secure friction fit. For solar PV installations, these anchors serve as the critical interface between the mounting structure and the foundation, ensuring stability against wind uplift and seismic shifts.
At Hebei Shijing Changtian Metal Structure Products Co., Ltd., we manufacture hex bolt sleeve anchors that are engineered specifically for the rigors of renewable energy infrastructure. Our products utilize Q235B and Q355B steel bases, offering superior tensile strength compared to standard industry bolts. By choosing SJCT's hex bolt sleeve anchors, you reduce the risk of structural failure and ensure your solar array remains secure for decades.
Q235B/Q355B
Base Material
GB/T 13912
Galvanizing Standard
3M+ Piles/Day
Production Capacity
Hex Bolt Sleeve Anchor Manufacturing Standards
Industrial-Scale Production Capacity
With two major production bases covering 25,000 square meters in Yongnian and Xingtai, Hebei Shijing Changtian delivers massive volume without compromising quality. Our automated punching lines and hot-dip galvanizing workshops allow us to produce over 3 million units annually. This scale ensures consistent supply for large-scale commercial solar projects, eliminating lead time risks.
Rigorous Quality Control
Every hex bolt sleeve anchor undergoes a multi-stage inspection process. We start with verified raw materials (Q235B/Q355B) and enforce strict tolerance controls during manufacturing. Our hot-dip galvanizing process meets GB/T 13912 standards, ensuring a zinc layer thickness of at least 85μm. This provides over 3,000 hours of salt spray resistance, protecting your investment from corrosion in harsh outdoor environments.
Benefit: Our ISO 9001 certified processes mean every batch arrives with consistent load-bearing capacity, reducing on-site installation failures and rework costs.
How to Select the Right Hex Bolt Sleeve Anchor
Evaluate Substrate Conditions
The effectiveness of a hex bolt sleeve anchor depends heavily on the base material (concrete grade, brick, or block). For heavy-duty solar mounting structures, high-strength C20-C40 concrete is ideal. If you are working with hollow bricks or aerated concrete, you may need specialized anchors with larger expansion sleeves. SJCT’s technical team can analyze your substrate data to recommend the optimal anchor length and diameter.
Assess Load Requirements
Solar arrays face dynamic loads from wind uplift and snow accumulation. When choosing an anchor, calculate the maximum pull-out force required. Our hex bolt sleeve anchors are engineered with high-tensile steel cores to withstand significant shear and tension. Selecting an anchor with a safety factor of 4:1 or higher is recommended for critical structural connections.
Corrosion Resistance Needs
For coastal or high-humidity solar farms, standard zinc plating may degrade too quickly. Opt for our hot-dip galvanized hex bolt sleeve anchors, which offer superior protection. The thick zinc coating acts as a sacrificial barrier, extending the service life of your fasteners by decades.
Solar Fastener Procurement Checklist
Use this checklist to evaluate potential suppliers of hex bolt sleeve anchors and ensure your procurement decision minimizes risk.
Material Verification
Confirm the supplier uses Q235B or Q355B steel for the bolt body, not recycled low-grade iron.
Galvanizing Certification
Request test reports verifying zinc weight (≥85μm for HDG) and adherence to GB/T 13912.
Load Capacity Data
Ensure the supplier provides engineering tables for pull-out and shear values based on concrete strength.
Sample Testing
Always request physical samples for third-party lab testing before committing to bulk orders.
Supply Chain Stability
Verify the manufacturer has their own galvanizing line to avoid delays caused by outsourcing.
Warranty Terms
Look for suppliers offering clear warranties against manufacturing defects and coating peeling.
Why Choose SJCT for Hex Bolt Sleeve Anchors
Integrated Supply Chain
Located in China's fastener capital, Yongnian, we control every step from steel coil to finished anchor. This vertical integration allows us to offer competitive pricing and rapid customization without middleman markups.
Global Compliance
Our products meet international standards including EN1090-1 and ASTM. We provide full documentation packs, simplifying your customs clearance and project approval processes in Europe and North America.
Technical Support
Beyond selling hardware, SJCT provides engineering support. Our team helps calculate anchor spacing and load distribution, ensuring your entire solar mounting system is optimized for safety and cost.
Common Issues with Solar Mounting Anchors
Problem: Premature Corrosion
Many buyers experience rust within 2-3 years because they chose cheap electro-galvanized anchors instead of hot-dip galvanized ones. The thin zinc layer on electro-galvanized bolts wears off quickly under UV exposure and rain.
Solution: Always specify Hot-Dip Galvanized (HDG) anchors with a minimum 85μm zinc thickness for outdoor solar applications.
Problem: Concrete Spalling
Incorrect drill hole cleaning or using an anchor in cracked concrete can cause the surrounding material to break apart (spall) under load. This compromises the entire mount.
Solution: Use vacuum systems to clean drill holes thoroughly before insertion. Ensure your installer verifies concrete integrity before anchoring.
Problem: Loose Connections Over Time
Vibration from wind can cause standard nuts to loosen, leading to structural instability. This is common with low-quality threads that don't maintain friction.
Solution: SJCT manufactures hex bolts with precision-threaded tolerances. Using high-grade lock nuts or applying thread-locking adhesive further prevents loosening.
Problem: Inconsistent Batch Quality
Ordering from multiple small suppliers often results in varying anchor dimensions, making installation difficult and slowing down construction crews.
Solution: Source from a single large manufacturer like SJCT with automated quality control, ensuring every anchor fits perfectly every time.
Frequently Asked Questions About Hex Bolt Sleeve Anchors
What is the difference between hex bolt sleeve anchors and wedge anchors?
Sleeve anchors use a expandable sleeve that works well in both solid and hollow base materials. Wedge anchors rely on a wedge mechanism at the bottom and generally require solid concrete. Sleeve anchors are often preferred for solar mounts where substrate conditions might vary.
Can SJCT provide custom lengths for hex bolt sleeve anchors?
Yes. We offer OEM/ODM services to customize anchor length, sleeve diameter, and bolt grade to match your specific project requirements and local building codes.
What is the typical lead time for bulk orders?
Due to our 25,000 sqm facility and automated lines, we maintain large inventory of standard sizes. For bulk orders, lead times are typically 7-15 days depending on quantity and shipping method.
Do you provide test reports for anchor pull-out strength?
Absolutely. We provide third-party laboratory test reports detailing pull-out and shear capacities for various concrete strengths, compliant with international standards.
How do you ensure corrosion resistance?
We use the hot-dip galvanizing process (GB/T 13912), which coats the entire anchor in a thick layer of zinc. This provides superior protection against rust compared to electroplating, lasting over 3,000 hours in salt spray tests.
What warranty do you offer on your anchors?
We offer a 10-year warranty on the main structure against manufacturing defects and coating degradation under normal environmental conditions.
