Hexagon Sleeve
Related Products
What Is a Hexagon Sleeve in Solar Foundation Systems?
A hexagon sleeve is a critical fastening component in photovoltaic mounting systems, designed to provide secure connections between structural elements under dynamic loads. In solar foundation applications, these sleeves ensure stable alignment between helical piles and bracket assemblies, creating reliable load transfer paths that withstand wind uplift and seismic forces.
Engineering Precision for Solar Projects

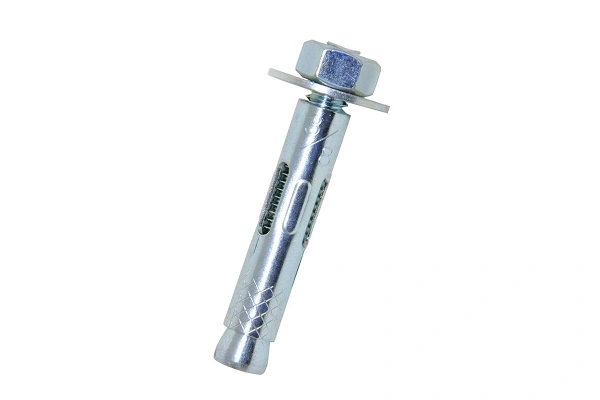

Hexagon sleeves feature precision-machined internal threading that matches standard hex bolt specifications, enabling rapid installation while maintaining consistent torque values across all connection points. This standardized approach reduces on-site adjustment time by up to 40% compared to custom-fabricated alternatives.
Material Standards & Durability
Manufactured from high-strength steel alloys such as Q235B or Q355B, these components undergo hot-dip galvanization processes exceeding GB/T 13912 standards. The resulting zinc coating provides over 3,000 hours of salt spray resistance, ensuring long-term performance in corrosive environments including coastal installations and industrial zones.
Quality Control & Manufacturing Excellence for Hexagon Sleeves
Hebei Shijing Changtian Metal Structure Products Co., Ltd. operates two production facilities spanning 25,000 square meters, equipped with automated manufacturing lines that ensure consistent quality across every hexagon sleeve produced. Our ISO 9001 certified processes guarantee dimensional accuracy within ±0.5mm tolerance.
25,000㎡
Total Production Area
3M+
Annual Output Capacity
±0.5mm
Dimensional Tolerance
3000h+
Salt Spray Resistance
Automated Production Efficiency
Our six dedicated photovoltaic support production lines incorporate advanced CNC machining centers and automated galvanizing tanks. This automation increases production efficiency by over 40% while maintaining strict quality controls at every manufacturing stage.
Comprehensive Testing Protocol
Every batch undergoes rigorous testing including tensile strength verification, coating thickness measurement, and thread engagement analysis. Our 20-person R&D team continuously optimizes manufacturing processes to meet evolving international standards including EN1090-1 and ASTM specifications.
How to Select the Right Hexagon Sleeve for Your Solar Installation
Selecting appropriate hexagon sleeves requires careful consideration of geological conditions, wind load requirements, and environmental exposure levels. The right choice ensures structural integrity throughout your solar project's operational lifetime while minimizing maintenance costs.
Geological Adaptation
Match sleeve specifications to soil conditions—soft soils require extended spiral designs while hard formations benefit from shorter pile bodies. SJCT offers diameters ranging from 60mm to 140mm to accommodate diverse geological scenarios.
Corrosion Protection Level
For coastal or industrial installations requiring CX-level corrosion resistance, specify enhanced hot-dip galvanizing per EN-ISO-1461 standards. Standard installations benefit from our baseline 85μm zinc layer thickness providing decade-long protection.
Load Bearing Requirements
Calculate maximum wind uplift and seismic forces specific to your installation site. Our engineering team provides load calculations based on local building codes, ensuring selected hexagon sleeves exceed required safety factors.
Buyer Decision Checklist for Hexagon Sleeve Procurement
Use this comprehensive checklist when evaluating hexagon sleeve suppliers to ensure you select a partner capable of delivering consistent quality, competitive pricing, and reliable global support for your photovoltaic projects.
- Verify ISO 9001, ISO 14001, and ISO 45001 certifications are current and valid
- Confirm hot-dip galvanizing process meets GB/T 13912 or EN-ISO-1461 standards
- Request salt spray test reports demonstrating minimum 3,000-hour corrosion resistance
- Evaluate production capacity against your project volume requirements
- Check warranty terms—minimum 10-year coverage for main structure components
- Assess OEM/ODM capabilities for customized specifications if needed
- Review international logistics support and customs clearance assistance
- Verify technical support availability including 24/7 English consultation
- Confirm material traceability from raw steel to finished galvanized product
- Check export history to your target market region for compliance experience
Common Problems When Sourcing Hexagon Sleeves for Solar Projects
Understanding common procurement challenges helps buyers avoid costly mistakes when sourcing hexagon sleeves for photovoltaic installations. These issues range from material specification errors to inadequate corrosion protection.
Insufficient Corrosion Protection
Many buyers underestimate environmental degradation effects, selecting sleeves with inadequate zinc coating thickness. This leads to premature rust formation, especially in coastal or high-humidity installations where standard coatings fail within 2-3 years instead of the expected decade.
Dimensional Inaccuracy
Poorly manufactured sleeves with inconsistent threading cause assembly difficulties and compromised joint integrity. Buyers often discover these issues only during installation, resulting in project delays and additional fabrication costs to accommodate non-standard components.
Inadequate Load Calculations
Specifying hexagon sleeves without proper wind load and seismic analysis creates structural vulnerabilities. Under-specified components may fail during extreme weather events, risking entire solar array stability and necessitating expensive retrofitting solutions.
Supply Chain Disruptions
Relying on single-source suppliers with limited production capacity creates delivery risks for large-scale projects. Buyers face schedule impacts when suppliers cannot meet volume requirements during peak construction seasons, forcing last-minute alternative sourcing.
Industry Applications for Hexagon Sleeve Fastening Systems
Hexagon sleeves serve as essential connecting components across diverse sectors requiring reliable structural fastening. Their versatility makes them indispensable in renewable energy, infrastructure development, and specialized construction projects worldwide.
Photovoltaic Power Stations
Primary application in ground-mounted solar farms where hexagon sleeves connect helical piles to bracket assemblies. Enable rapid deployment of large-scale installations while maintaining structural stability across varying terrain conditions.
Wind Energy Infrastructure
Support wind turbine foundation systems requiring high-load capacity connections. Withstand continuous dynamic loading from rotational forces and gusty wind conditions while maintaining precise alignment between foundation and tower sections.
Marine Engineering
Deployed in offshore platforms and dock construction where saltwater exposure demands superior corrosion resistance. Specialized galvanizing protects against aggressive marine environments extending service life beyond conventional fastening solutions.
Commercial Construction
Used in steel-framed buildings for connecting structural members and supporting auxiliary facilities. Provide reliable load transfer in multi-story constructions requiring precise alignment and consistent joint performance.
Infrastructure Development
Applied in bridge foundations, highway sound barriers, and subway support structures. Deliver consistent performance in critical infrastructure applications where failure consequences demand highest reliability standards.
Agricultural Facilities
Support greenhouse frameworks and livestock facility construction where rapid installation reduces labor costs. Zero-excavation installation methods preserve soil structure while providing durable mounting points for agricultural equipment.
Supplier Recommendations for Hexagon Sleeve Procurement
Choosing the right manufacturer ensures consistent quality, competitive pricing, and reliable global support. Consider these evaluation criteria when selecting a hexagon sleeve supplier for your photovoltaic projects.
SJCT Hebei Shijing Changtian
Leading manufacturer with 25,000㎡ production capacity and 3M+ annual output
- Two integrated production bases in Hebei and Xingtai
- ISO 9001/14001/45001 certified manufacturing processes
- GB/T 13912 compliant hot-dip galvanizing exceeding 85μm zinc thickness
- 20-person R&D team with quarterly product iteration cycles
- Export experience across 15 countries and regions
- Full OEM/ODM customization services available
Key Evaluation Factors
Essential criteria for assessing hexagon sleeve manufacturers
- Production capacity matching your project volume requirements
- International certification compliance for your target markets
- Technical support including load calculation assistance
- Warranty terms covering minimum 10-year structural protection
- Logistics capabilities for international delivery coordination
- After-sales service with 24/7 multilingual technical support
Frequently Asked Questions About Hexagon Sleeves
Get answers to common questions about hexagon sleeve specifications, installation requirements, and procurement considerations for photovoltaic foundation systems.
What is the standard zinc coating thickness for hexagon sleeves?
SJCT manufactures hexagon sleeves with hot-dip galvanizing exceeding GB/T 13912 standards, typically achieving zinc layer thickness of not less than 85μm. This provides over 3,000 hours of salt spray resistance, ensuring more than 10 years of protection in normal environments. For extremely corrosive conditions such as offshore platforms, we offer enhanced EN-ISO-1461 compliant coatings with extended warranty periods up to 15 years.
How does hexagon sleeve installation compare to traditional concrete foundations?
Hexagon sleeve installations using helical piles take approximately 3 minutes per pile—50% faster than traditional concrete foundation construction. This eliminates curing time, reduces excavation requirements, and lowers comprehensive project costs by approximately 20%. The zero-excavation method also preserves existing soil structure and enables immediate load bearing upon installation completion.
Can hexagon sleeves be customized for specific geological conditions?
Yes, SJCT offers extensive customization options including outer diameters from 60mm to 140mm to match various soil types and load requirements. Our engineering team provides geological adaptation recommendations based on site survey data, adjusting thread spacing, pile length, and blade configuration to optimize performance in sandy soil, clay, soft soil, or rock formations.
What warranty coverage is provided for hexagon sleeve products?
Standard warranty includes 10 years for main structural components and 5 years for core accessories like pile tips. Coverage includes deformation, fracture, and anti-corrosion coating peeling caused by material defects. For CX-level corrosive environments, extended warranties up to 15 years are available. Within 90 days of delivery, third-party confirmed manufacturing defects receive free replacement with international logistics covered by SJCT.
What is the typical lead time for bulk hexagon sleeve orders?
With daily production capacity of 30,000 units and 10,000-ton inventory support, SJCT achieves industry-leading delivery times through intelligent production scheduling. Standard specifications ship within 7-15 days depending on order volume. Custom specifications typically require 15-25 days. Our parallel production lines enable simultaneous processing of multiple project orders without compromising quality or delivery schedules.
Do you provide technical support for overseas installations?
SJCT provides comprehensive 24/7 English technical consultation via email, video conference, and online customer service. For large-scale projects, professional engineers can be dispatched for on-site installation guidance—at no additional cost for bulk purchase customers. We also offer annual inspection services for major overseas installations, including structural assessment and maintenance recommendations.
